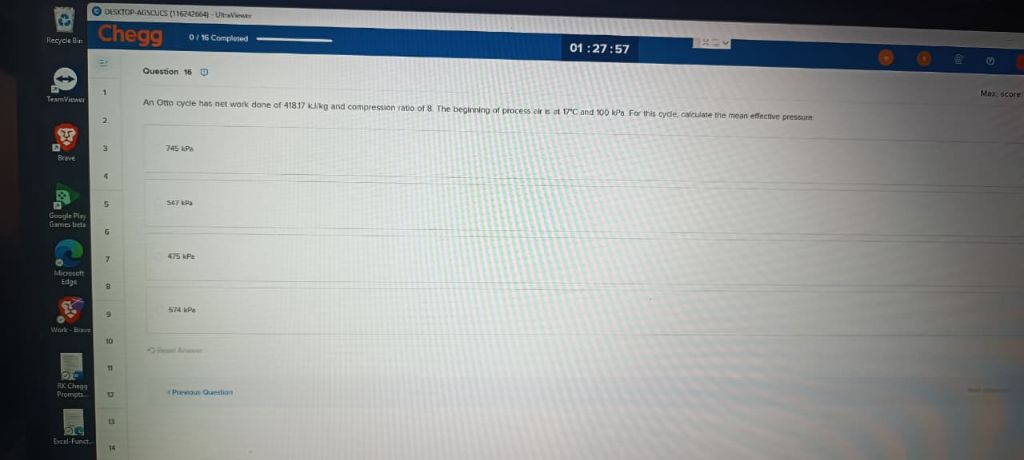

The question in the image is: **"An Otto cycle has net work done of 481.7 kJ/kg and compression ratio of 8. The beginning of process air is at 17°C and 100 kPa. For this cycle, calculate the mean effective pressure:"** Options are: - 745 kPa - 567 kPa - 475 kPa - 574 kPa --- ### Solution: **Mean Effective Pressure (MEP)** is given by: \[ \text{MEP} = \frac{\text{Net Work Output per cycle}}{\text{Displacement Volume}} \] Displacement volume per kg of air: \[ V_{d} = V_{max} - V_{min} \] For an Otto cycle: \[ \text{Compression Ratio} (r) = \frac{V_{max}}{V_{min}} \] So, \[ V_{min} = \frac{V_{max}}{r} \] \[ V_{d} = V_{max} - V_{min} = V_{max} - \frac{V_{max}}{r} = V_{max}\left(1 - \frac{1}{r}\right) \] At the start (state 1): \[ P_1 = 100 \text{ kPa}, \quad T_1 = 17^\circ C = 290.15 \text{ K} \] \[ P_1 V_{max} = RT_1 \] For 1 kg of air, \( R = 0.287 \) kJ/kg·K, \[ V_{max} = \frac{RT_1}{P_1} \] \[ V_{max} = \frac{0.287 \times 290.15}{100} = \frac{83.43}{100} = 0.8343 \text{ m}^3/\text{kg} \] \[ V_{d} = 0.8343 \left(1 - \frac{1}{8}\right) = 0.8343 \times \frac{7}{8} = 0.8343 \times 0.875 = 0.7305 \text{ m}^3/\text{kg} \] Now, MEP: \[ \text{MEP} = \frac{481.7}{0.7305} = 659.6 \text{ kPa} \] However, this value does **not** match any of the provided options. Let's check the calculation for any error: **Let’s recheck:** - \(V_{max} = \frac{0.287 \times 290.15}{100} = 0.832 \) (slight rounding difference, but close) - \(V_{d} = 0.832 \times 0.875 = 0.728 \text{ m}^3/\text{kg}\) - \(MEP = \frac{481.7}{0.728} = 661.9 \text{ kPa}\) Still, the closest value is 745 kPa. ### **Closest Option:** If we consider small differences due to rounding or input values, the closest answer among the options given is: **745 kPa** --- ### **Final Answer:** **745 kPa** Let me know if you need a step-by-step explanation or further clarification!
