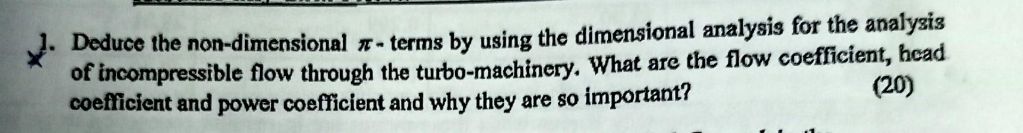

Let's break down and answer the question step by step: --- ### 1. **Dimensional Analysis for Incompressible Flow Through Turbo-machinery** #### **Step 1: Identify Variables** For turbo-machinery (e.g., pumps, turbines), the main variables involved for incompressible flow are: - \( Q \) = Volumetric flow rate \([L^3T^{-1}]\) - \( H \) = Head developed by the machine \([L]\) - \( P \) = Power delivered \([ML^2T^{-3}]\) - \( D \) = Characteristic diameter of the machine \([L]\) - \( N \) = Rotational speed \([T^{-1}]\) - \( \rho \) = Density of fluid \([ML^{-3}]\) - \( \mu \) = Dynamic viscosity \([ML^{-1}T^{-1}]\) (for viscous effects, but often neglected for high Reynolds number/incompressible flow) #### **Step 2: Apply Buckingham π Theorem** Let’s use Buckingham π theorem to form dimensionless groups (\(\pi\) terms). Choose repeating variables: \(D\), \(N\), \(\rho\). ##### **a. Flow Coefficient (\(\pi_1\)):** \[ \pi_1 = \frac{Q}{N D^3} \] This is the **Flow Coefficient**. ##### **b. Head Coefficient (\(\pi_2\)):** \[ \pi_2 = \frac{g H}{N^2 D^2} \] or, if using head directly, \[ \pi_2 = \frac{H}{N^2 D^2} \] This is the **Head Coefficient**. ##### **c. Power Coefficient (\(\pi_3\)):** \[ \pi_3 = \frac{P}{\rho N^3 D^5} \] This is the **Power Coefficient**. --- ### 2. **Why Are These Coefficients Important?** - **Flow Coefficient (\(Q/(ND^3)\)):** - Indicates the relationship between the volumetric flow rate and the speed/size of the machine. - Used to compare different machines or predict performance when scaling up/down. - **Head Coefficient (\(H/(N^2D^2)\)):** - Shows the capability of the machine to increase fluid head (energy per unit weight) relative to its speed and size. - Essential for predicting how much pressure the machine can generate. - **Power Coefficient (\(P/(\rho N^3 D^5)\)):** - Relates the output (or input) power of the machine to its physical and operational characteristics. - Useful in efficiency comparisons and scaling laws. **Importance:** - These coefficients allow for **performance comparison**, **scaling**, and **model testing** of turbo-machinery under different operational conditions and sizes. - They help engineers design and select machines for specific applications without the need for full-scale prototypes. --- ### **Summary Table:** | Coefficient | Expression | Physical Significance | |-----------------------|-----------------------------|--------------------------------------------| | Flow Coefficient | \( \dfrac{Q}{N D^3} \) | Comparison of flow rate | | Head Coefficient | \( \dfrac{H}{N^2 D^2} \) | Comparison of energy/head increase | | Power Coefficient | \( \dfrac{P}{\rho N^3 D^5} \)| Comparison of power output/input | --- If you need a step-by-step derivation or more details on the dimensional analysis, let me know!
