The question is:

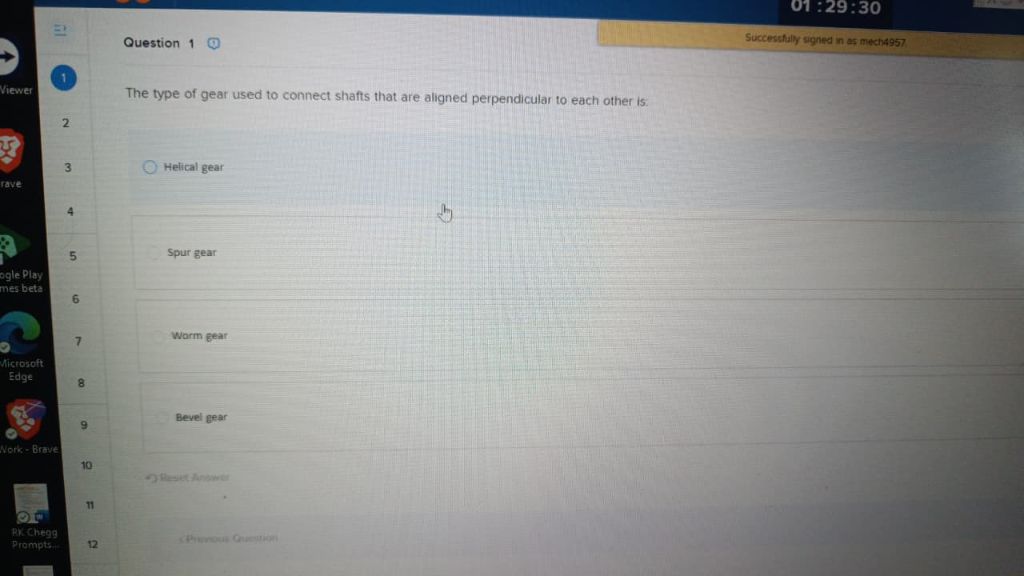

**"The type of gear used to connect shafts that are aligned perpendicular to each other is:"**
Given options:
1. Helical gear
2. Spur gear
3. Worm gear
4. Bevel gear
**Correct answer:**
**Bevel gear**
**Explanation:**
Bevel gears are specifically designed to transmit motion between intersecting shafts, most commonly at a right angle (90 degrees/perpendicular). Helical and spur gears are typically used for parallel shafts, while worm gears are used for non-intersecting, perpendicular shafts but with a different mechanism. The best answer for “perpendicular shafts” is **bevel gear**.
