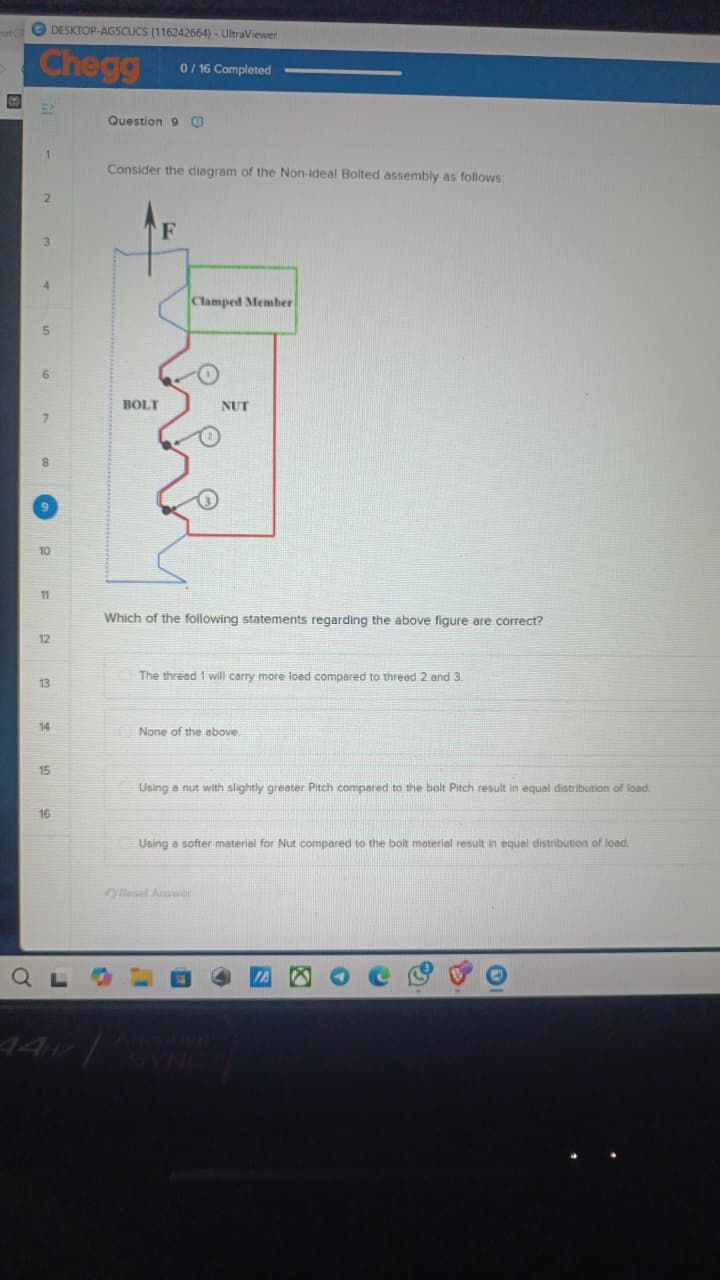

Let's analyze the question and the diagram provided: ### Question Recap You are asked: "Which of the following statements regarding the above figure are correct?" #### Options: 1. The thread 1 will carry more load compared to threads 2 and 3. 2. None of the above. 3. Using a nut with slightly greater Pitch compared to the bolt Pitch results in equal distribution of load. 4. Using a softer material for Nut compared to the bolt material results in equal distribution of load. --- ### Explanation: **In a non-ideal bolted assembly:** - The threads closer to the loaded end (Thread 1) generally carry more load compared to threads farther away (Threads 2 and 3). This is due to deformation and uneven load distribution in real-world threaded assemblies. #### Option Analysis: 1. **The thread 1 will carry more load compared to threads 2 and 3:** - This is **correct** in a non-ideal bolted assembly as the load is not evenly distributed among threads; the first engaged thread experiences the highest load. 2. **None of the above:** - Incorrect, because option 1 is correct. 3. **Using a nut with slightly greater Pitch compared to the bolt Pitch results in equal distribution of load:** - Incorrect. Pitch mismatch would likely result in thread binding and improper load sharing. 4. **Using a softer material for Nut compared to the bolt material results in equal distribution of load:** - Incorrect. Softer material may deform more but does not guarantee equal load distribution. --- ### **Correct Answer** **The thread 1 will carry more load compared to threads 2 and 3.** (Option 1) Let me know if you need further clarification!
