Question:
1204 0 48 D

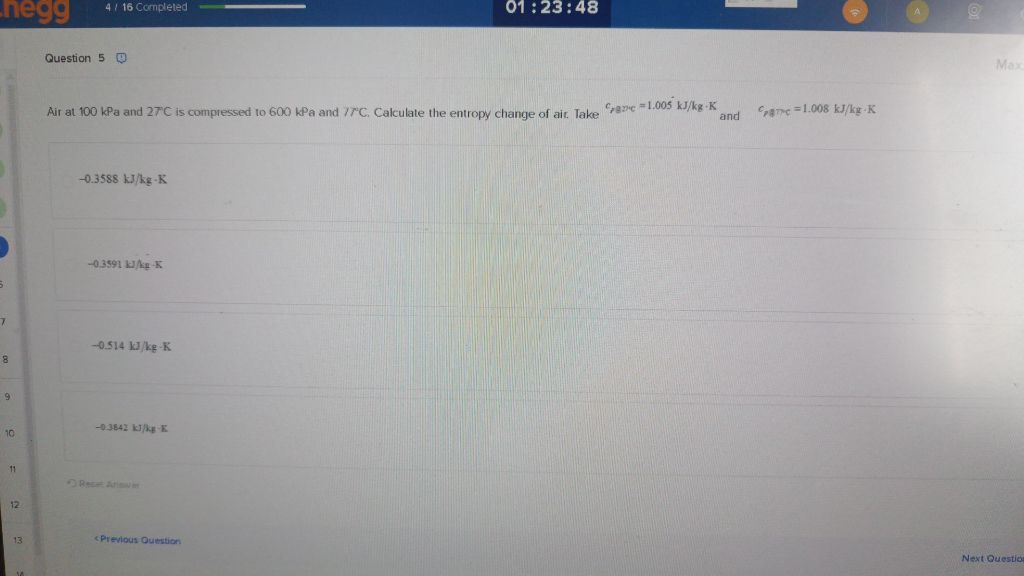

Guestion 5 ©
Air 81100 kPa and 27°C is compressed 10 600 k alculate the entropy change of ait. Take iin
03588 Kika K
’
0514 ke K
g
5
i e382 Wy
[3
- i pr —
Next Questo
This is AI generated Response.
Asked by: Veera manikanta
Created at: 2025-08-12 09:49:46
Asked by: Veera manikanta
Created at: 2025-08-12 09:49:46
Final Answer:
Rendered
Raw Text
Did you like this answer?
Let's solve the problem step by step:
**Given:**
- Initial pressure, \(P_1 = 100\) kPa
- Initial temperature, \(T_1 = 27^\circ C = 300.15\) K
- Final pressure, \(P_2 = 600\) kPa
- Final temperature, \(T_2 = 77^\circ C = 350.15\) K
- \(c_p = 1.005\) kJ/kg·K
- \(c_v = 0.718\) kJ/kg·K
- \(R = c_p - c_v = 1.005 - 0.718 = 0.287\) kJ/kg·K
**Formula for entropy change of air (ideal gas):**
\[
\Delta s = c_p \ln\left(\frac{T_2}{T_1}\right) - R \ln\left(\frac{P_2}{P_1}\right)
\]
Let's plug in the values:
### Step 1: Calculate \(\ln\left(\frac{T_2}{T_1}\right)\)
\[
\ln\left(\frac{T_2}{T_1}\right) = \ln\left(\frac{350.15}{300.15}\right) = \ln(1.1667) = 0.1543
\]
### Step 2: Calculate \(\ln\left(\frac{P_2}{P_1}\right)\)
\[
\ln\left(\frac{P_2}{P_1}\right) = \ln\left(\frac{600}{100}\right) = \ln(6) = 1.7918
\]
### Step 3: Substitute in the formula
\[
\Delta s = 1.005 \times 0.1543 - 0.287 \times 1.7918
\]
\[
\Delta s = 0.1551 - 0.5143
\]
\[
\Delta s = -0.3592 \text{ kJ/kg·K}
\]
### Step 4: Match with the options
The closest option is:
- **-0.3591 kJ/kg·K**
---
**Final Answer:**
\[
\boxed{-0.3591 \text{ kJ/kg·K}}
\]
